Grip Rings Metric GRP Range

Grip Rings

grip ring

Self locking axially fitted circlips for shafts without grooves. Grip Rings have a large section height resulting in a high gripping pressure. Moreover, the tapered section design ensures even contact when fitted. As this circlip is not stretched beyond its elastic limit during fitting or removal it may be re-used as often as required without causing damage to the shaft.

Standard material: Carbon Spring Steel – Standard Finish: Phosphate and Oil
(Certain sizes are available in Stainless Steel)

Measurements in mm & N

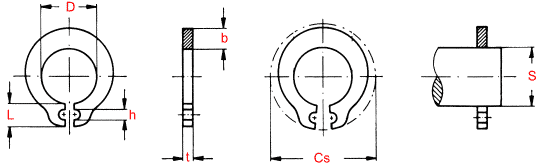

NameShaft (S)Shaft ToleranceThick (t)Thickness ToleranceFree Diameter (D)Free Diameter ToleranceClearance on Shaft (Cs)Beam (b)Lug (L)Hole Diameter (h) Axial Load (N)Price 1-249Price 250-999Price 1000-4999Price 5000-9999Price 10000+Buy
