Crescent Rings American N1800
Radially fitted circlips for shafts with grooves. Crescent Rings provide a shallow but uniform shoulder on relatively small shaft diameters. Higher resistance to thrust loads than standard ‘E’ type circlips.
Neat appearance and suitable for applications where small clearance dimensions are important.
(Certain sizes are available in Stainless Steel)
Standard material: Carbon Spring Steel – Standard Finish: Phosphate and Oil.
Display Price: Per 100 unitsPer single unit Per 100 unitsPer single unit

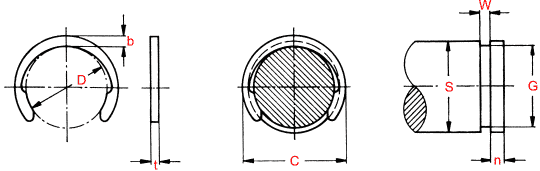

| Name | Shaft (S) | Shaft Tolerance | Thick (t) | Thickness Tolerance | Free Diameter (D) | Free Diameter Tolerance | Circlip in Groove | Beam | Ring Load Carrying Capacity (kN) | Groove Diameter (G) | Groove Tolerance | Groove Width (W) | Edge Margin (n) | Groove Load Carrying Capacity (kN) | Price 1-249 | Price 250-999 | Price 1000-4999 | Price 5000-9999 | Price 10000+ | Buy |
|---|
